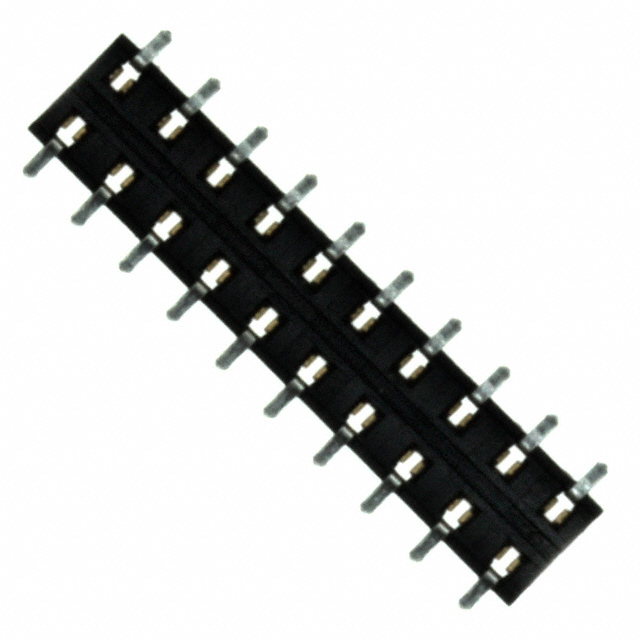

91596-120LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 91596-120LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 91596-120LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 91596-120LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN RECEPT 20POS 2MM STR DL SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 30 pcs | 120 pcs | ||
|---|---|---|---|---|---|
| $1.235 | $1.087 | $0.988 | |||
| 510 pcs | 1020 pcs | 5010 pcs | |||
| $0.84 | $0.717 | $0.643 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 91596-120LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN RECEPT 20POS 2MM STR DL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49521 pcs | Data sheet | 91596 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Style | Board to Board or Cable |
| Series | Minitek® | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 609-2730 91596120LF |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Plastic |
| Insulation Height | 0.091" (2.30mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 20 Position Receptacle, Bottom Entry Connector 0.079" (2.00mm) Surface Mount Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Beryllium Copper |
| Contact Length - Post | - | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Bottom Entry |
| Applications | - |
