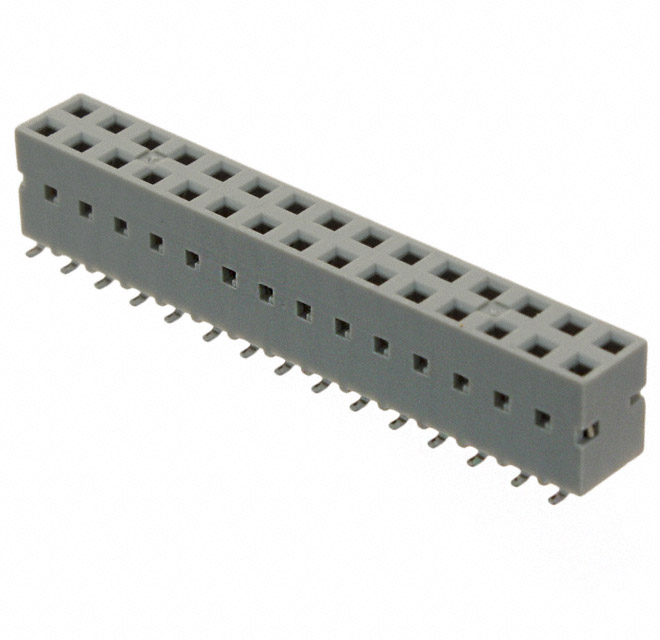

89898-315LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 89898-315LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 89898-315LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 89898-315LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN RCPT 30POS .100 DL STR SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $1.258 | $1.208 | $1.007 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.856 | $0.73 | $0.654 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 89898-315LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN RCPT 30POS .100 DL STR SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 54547 pcs | Data sheet | 89947 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | Dubox™ | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 609-3049 89898-315LF-ND 89898315LF |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 10.81mm | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.275" (6.99mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 30 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Bottom or Top Entry |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
