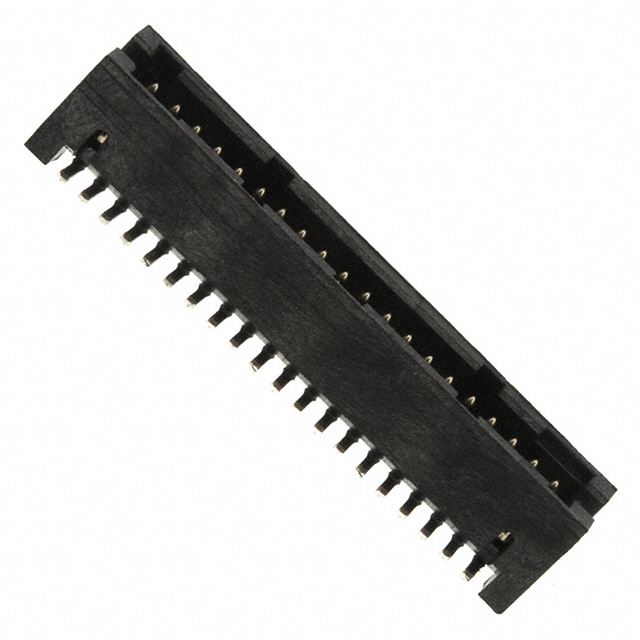

87409-120LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 87409-120LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 87409-120LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 87409-120LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 40POS .050 VERT SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 21 pcs | 105 pcs | ||
|---|---|---|---|---|---|
| $1.188 | $1.141 | $0.951 | |||
| 504 pcs | 1008 pcs | 5019 pcs | |||
| $0.808 | $0.689 | $0.618 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 87409-120LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 40POS .050 VERT SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 58045 pcs | Data sheet | 98028 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Rib-Cage™ |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 609-1555 87409120LF |
Operating Temperature | -55°C ~ 130°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 6.42mm | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.226" (5.74mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 40 position 0.050" (1.27mm) |
| Current Rating | 1A (DC) | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.130" (3.30mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold or Gold, GXT™ |
| Connector Type | Header | Applications | General Purpose, Military |
