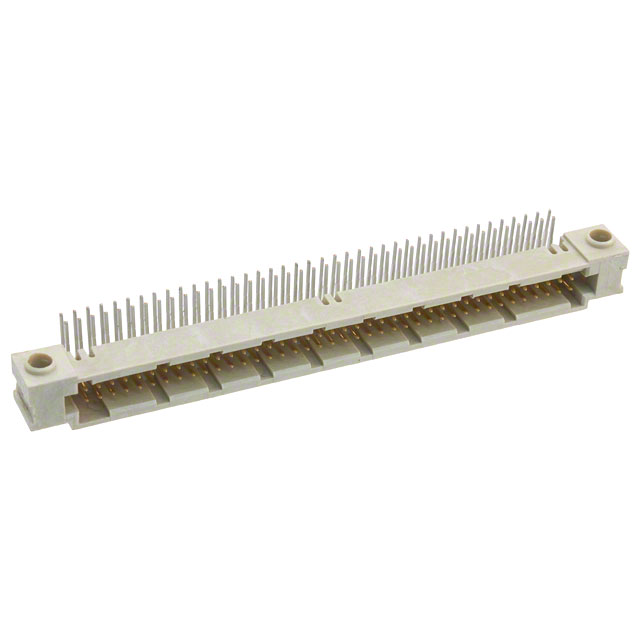

87402-140LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 87402-140LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 87402-140LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 87402-140LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 80POS .050 R/A PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1260 pcs | ||||
|---|---|---|---|---|---|
| $3.953 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 87402-140LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 80POS .050 R/A PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7963 pcs | Data sheet | Ribcage III SMT Vert Header Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Rib-Cage™ |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 609-3171 87402-140LF-ND 87402140LF |
Operating Temperature | -55°C ~ 130°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 80 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.240" (6.10mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 80 position 0.050" (1.27mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | - |
| Contact Length - Post | 0.075" (1.91mm) | Contact Length - Mating | 0.130" (3.30mm) |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold or Gold, GXT™ |
| Connector Type | Header | Applications | - |
