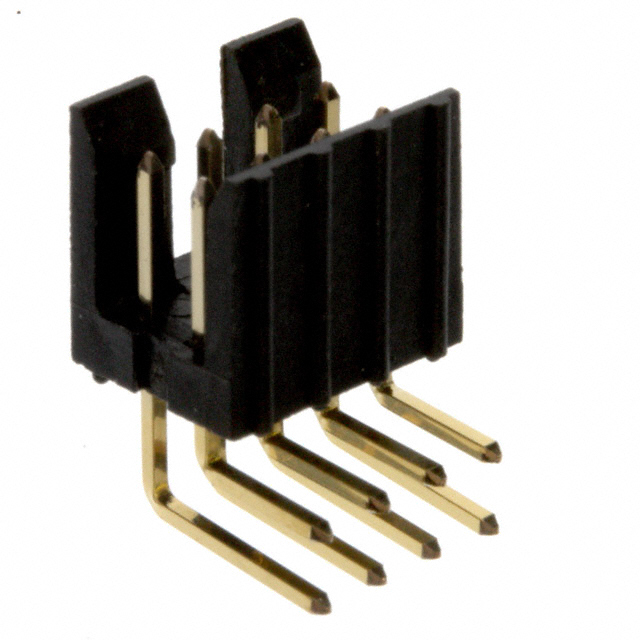

78207-108HLF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 78207-108HLF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 78207-108HLF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 78207-108HLF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 8POS DL R/A PCB AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.492 | $0.447 | $0.383 | $0.319 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.274 | $0.243 | $0.237 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 78207-108HLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 8POS DL R/A PCB AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80523 pcs | Data sheet | 78207 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall | Series | Mini-PV™, Basics+ |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 609-2437 78207108HLF |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | - | Insulation Height | 0.303" (7.70mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Friction Lock |
| Detailed Description | Connector Header Through Hole, Right Angle 8 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.120" (3.05mm) |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold or Gold, GXT™ | Connector Type | Header |
| Applications | - |
