77317-404-32LF

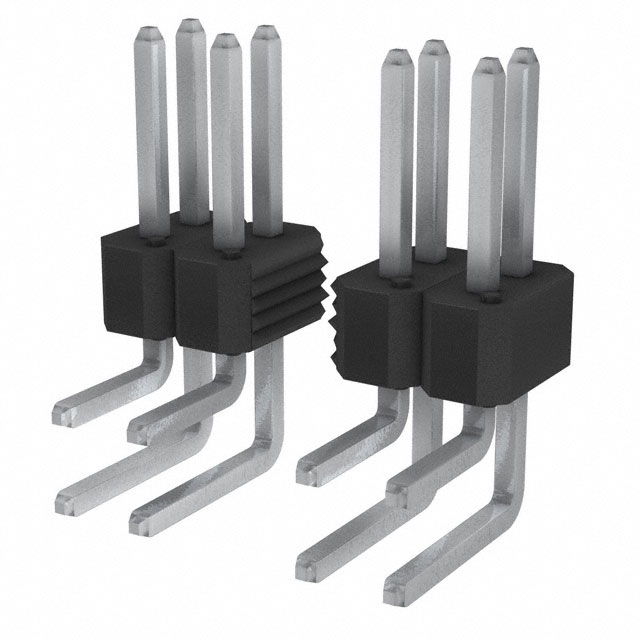

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 77317-404-32LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 77317-404-32LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 77317-404-32LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | BERGSTIK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 400 pcs | ||||
|---|---|---|---|---|---|
| $0.478 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 77317-404-32LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | BERGSTIK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82265 pcs | Data sheet | 77317 |
| Category | Connectors, Interconnects | Voltage - DC Spark Over (Nom) | Phosphor Bronze |
| Type Attributes | - | Termination | Solder |
| Style | Board to Board | Stacking Direction | Male Pin |
| Shrouding | 0.100" (2.54mm) | Shield Termination | Square |
| Series | BERGSTIK® | Row Spacing - Mating | Unshrouded |
| RoHS Status | Bulk | Ripple Current - Low Frequency | - |
| Pitch - Connector | - | Overall Contact Length | 0.120" (3.05mm) |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions | 32 | Number of Contacts | 78.7µin (2.00µm) |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Material - Insulation | All |
| Manufacturer Standard Lead Time | 7 Weeks | Manufacturer Part Number | 77317-404-32LF |
| Length - Post (Mating) | - | Insulation Material | Tin |
| Insulation Height | - | Features | - |
| Expanded Description | 32 Positions Header Connector 0.100" (2.54mm) Through Hole, Right Angle Tin-Lead | Description | BERGSTIK |
| Current Rating | - | Current - Max/Contact | - |
| Contact Length - Post | 0.230" (5.84mm) | Contact Length - Mating | 0.100" (2.54mm) |
| Contact Finish Thickness - Post | Thermoplastic | Contact Finish Thickness - Mating | Tin |
| Contact Finish - Post | 78.7µin (2.00µm) | Contact Finish - Mating | 0.190" (4.83mm) |
| Connector Type | Header | Actual Diameter | Black |
