77313-801-06LF

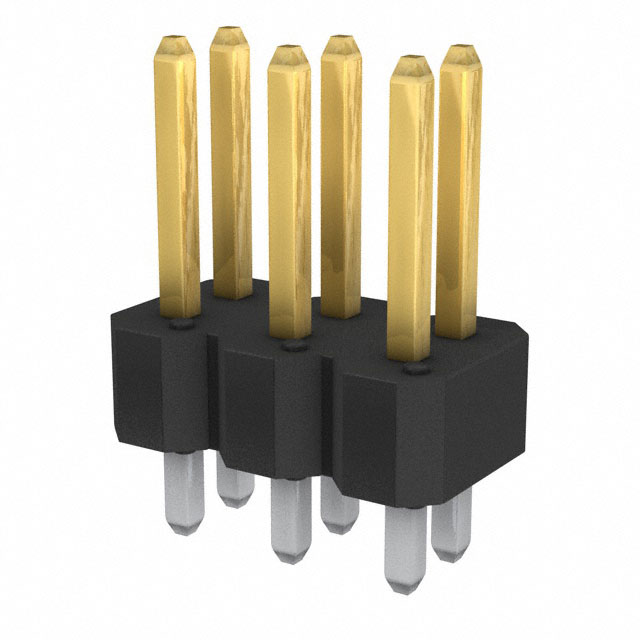

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 77313-801-06LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 77313-801-06LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 77313-801-06LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER .100 DUAL STR 6POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.141 | $0.132 | $0.093 | $0.079 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.066 | $0.057 | $0.053 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 77313-801-06LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER .100 DUAL STR 6POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 421450 pcs | Data sheet | 77313 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | BERGSTIK® |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.425" (10.80mm) |
| Other Names | 609-5715 77313-801-06LF-ND |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 6 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.095" (2.41mm) | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold or Gold, GXT™ |
| Connector Type | Header, Breakaway | Applications | - |
