77311-824-36LF

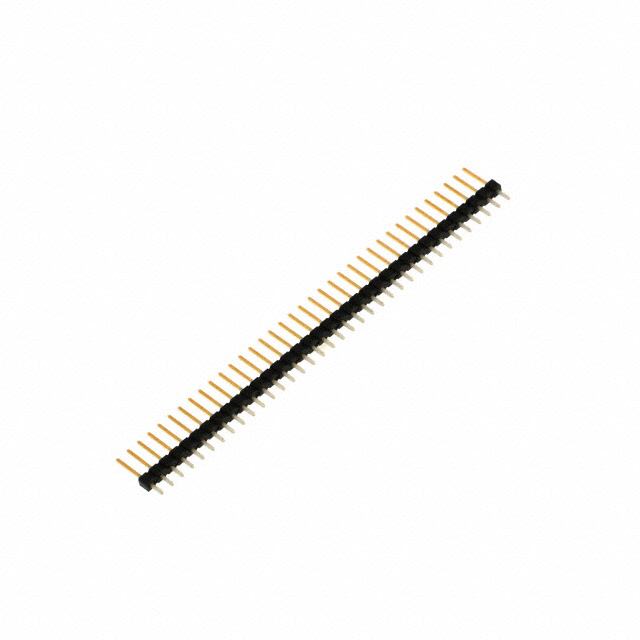

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 77311-824-36LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 77311-824-36LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 77311-824-36LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER .100 SINGL STR 36POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.675 | $0.612 | $0.525 | $0.437 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.375 | $0.332 | $0.325 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 77311-824-36LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER .100 SINGL STR 36POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59821 pcs | Data sheet | 77311 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | BERGSTIK® |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.480" (12.19mm) |
| Other Names | 609-6105 77311-824-36LF-ND |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 36 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 36 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.114" (2.90mm) | Contact Length - Mating | 0.266" (6.75mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold or Gold, GXT™ |
| Connector Type | Header | Applications | - |
