76385-409LF

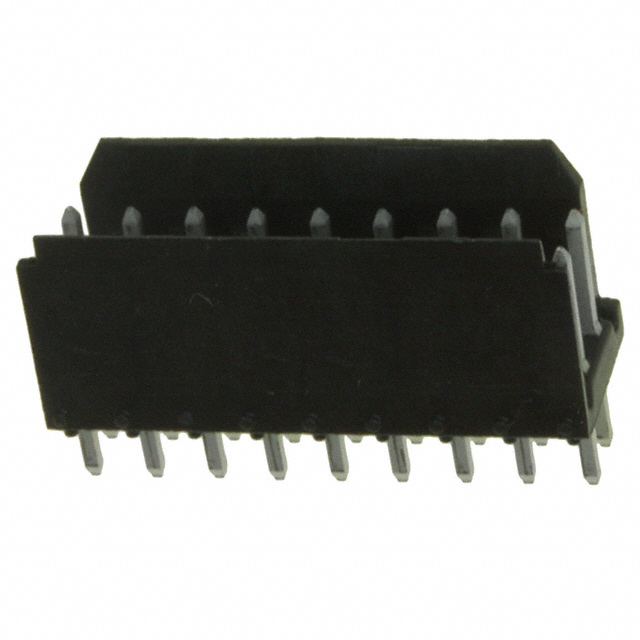

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 76385-409LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 76385-409LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 76385-409LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 18PS .100 DL STR TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 24 pcs | 120 pcs | 504 pcs | |
|---|---|---|---|---|---|
| $0.599 | $0.542 | $0.465 | $0.387 | ||
| 1008 pcs | 5016 pcs | 10008 pcs | |||
| $0.332 | $0.294 | $0.288 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 76385-409LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 18PS .100 DL STR TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82986 pcs | Data sheet | 76624 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall | Series | Dubox™ |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | 0.411" (10.44mm) |
| Other Names | 609-1354 76385409LF |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 18 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.368" (9.35mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 18 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | 0.197" (5.00mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 78.7µin (2.00µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
