76382-307LF

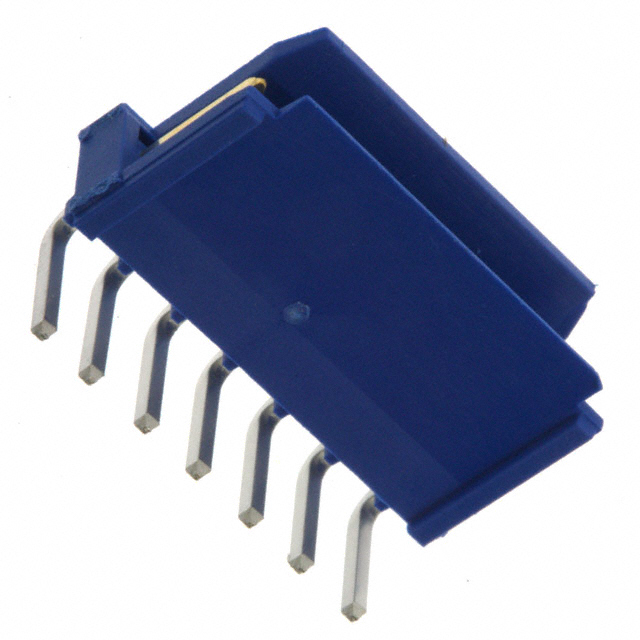

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 76382-307LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 76382-307LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 76382-307LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 7POS .100" R/A GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 33 pcs | 132 pcs | 528 pcs | |
|---|---|---|---|---|---|
| $0.455 | $0.377 | $0.345 | $0.282 | ||
| 1023 pcs | 5016 pcs | 10032 pcs | |||
| $0.251 | $0.22 | $0.209 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 76382-307LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 7POS .100" R/A GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 95753 pcs | Data sheet | 76383 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Dubox™ |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 609-1283 76382307LF |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 7 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.209" (5.30mm) | Insulation Color | Blue |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole, Right Angle 7 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | 0.197" (5.00mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold, GXT™ |
| Connector Type | Header | Applications | - |
