75869-106LF

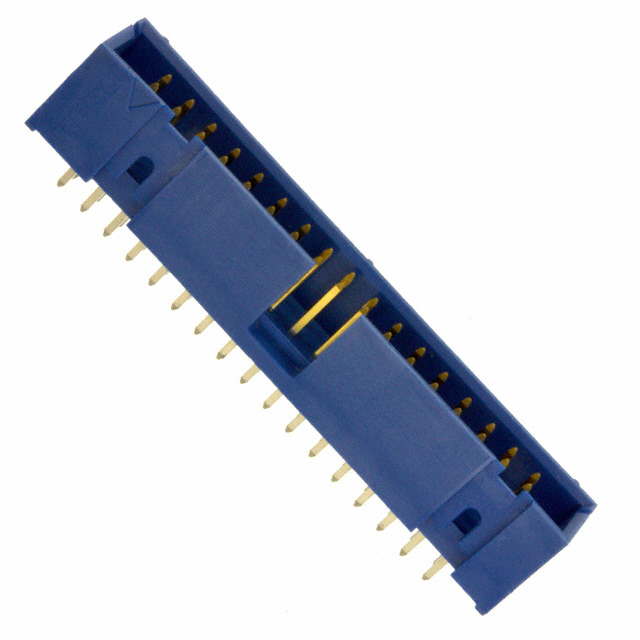

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 75869-106LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 75869-106LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 75869-106LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 34POS DUAL VERT PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 11 pcs | 110 pcs | 506 pcs | |
|---|---|---|---|---|---|
| $0.746 | $0.678 | $0.581 | $0.484 | ||
| 1001 pcs | 5005 pcs | 10010 pcs | |||
| $0.415 | $0.368 | $0.36 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 75869-106LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 34POS DUAL VERT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60672 pcs | Data sheet | 75880 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Quickie™ |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 609-1778 75869106LF |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 34 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.377" (9.57mm) | Insulation Color | Blue |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 34 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.236" (6.00mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold, GXT™ |
| Connector Type | Header | Applications | - |
