75867-101LF

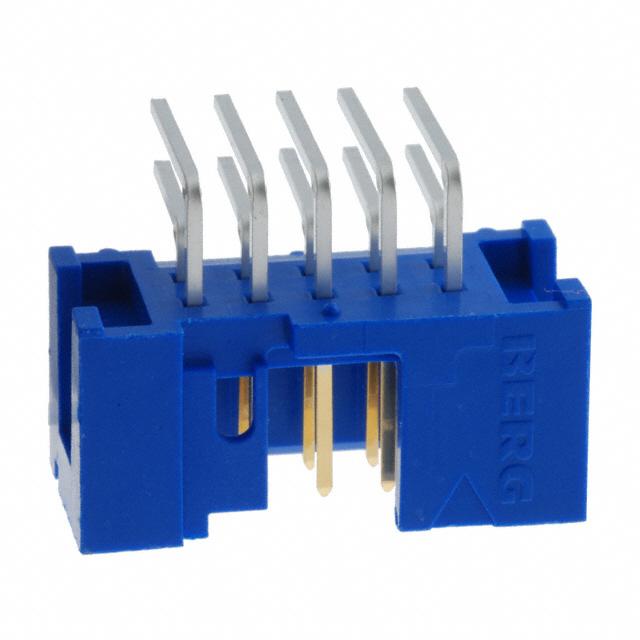

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 75867-101LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 75867-101LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 75867-101LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 10POS DUAL R/A PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 29 pcs | 116 pcs | 522 pcs | |
|---|---|---|---|---|---|
| $0.38 | $0.315 | $0.289 | $0.237 | ||
| 1015 pcs | 5017 pcs | 10005 pcs | |||
| $0.21 | $0.184 | $0.175 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 75867-101LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 10POS DUAL R/A PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 121710 pcs | Data sheet | 75869 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Quickie™ |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 609-1767 75867101LF |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.362" (9.20mm) | Insulation Color | Blue |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.236" (6.00mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold, GXT™ |
| Connector Type | Header | Applications | - |
