Home > Products > Connectors, Interconnects > D-Shaped Connectors - Centronics > 72547-001LF

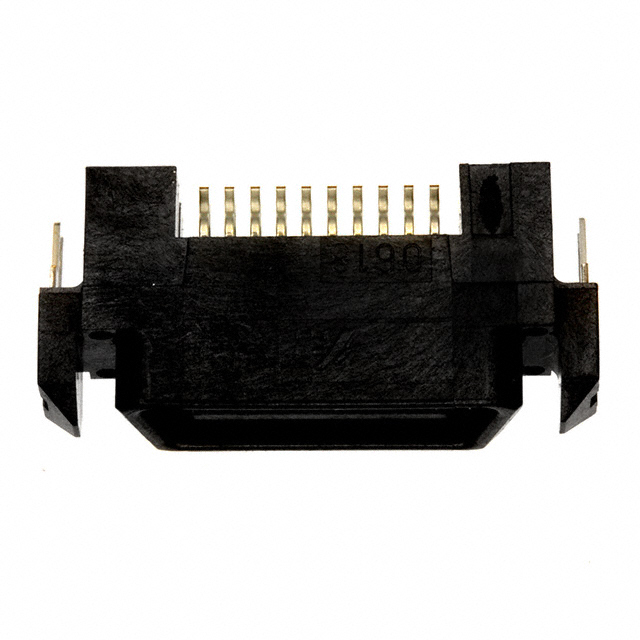

72547-001LF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 72547-001LF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	72547-001LF
Manufacturer	Amphenol FCI
Description	CONN PLUG SCA2 20POS STRADDLE
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4525 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	72547-001LF	Manufacturer	Amphenol FCI
Description	CONN PLUG SCA2 20POS STRADDLE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4525 pcs	Data sheet	72583 Drawing
Category	Connectors, Interconnects	Type	SCA-2
Termination	Solder	Series	72547
Other Names	609-1566	Number of Rows	2
Number of Positions	20	Mounting Type	Board Edge, Straddle Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Flange Feature	-	Features	-
Detailed Description	20 Position Plug Connector SCA-2 Board Edge, Straddle Mount Solder	Contact Finish Thickness	30.0µin (0.76µm)
Contact Finish	Gold, GXT™	Connector Type	Plug
Connector Style	Center Strip Contacts
