71991-307LF

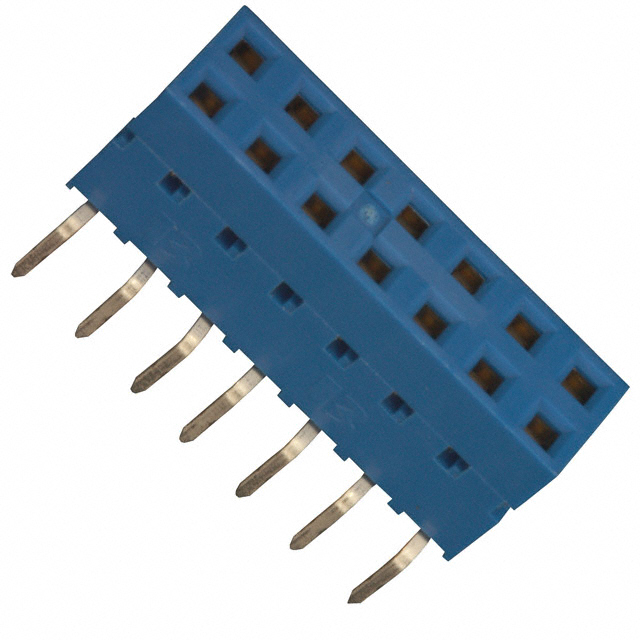

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 71991-307LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 71991-307LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 71991-307LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN RCPT 14POS .100 DL STR PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 33 pcs | 66 pcs | 132 pcs |
|---|---|---|---|---|---|
| $0.893 | $0.811 | $0.761 | $0.728 | $0.695 | |
| 264 pcs | 528 pcs | 1023 pcs | 2508 pcs | ||
| $0.629 | $0.579 | $0.496 | $0.463 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 71991-307LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN RCPT 14POS .100 DL STR PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74906 pcs | Data sheet | 71994 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | Dubox™ | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 609-3036 609-3036-ND 609-4501 71991-307LF-ND 71991307LF |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 14 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 11.04mm | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.275" (6.99mm) | Insulation Color | Blue |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 14 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.118" (3.00mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Bottom or Top Entry |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
