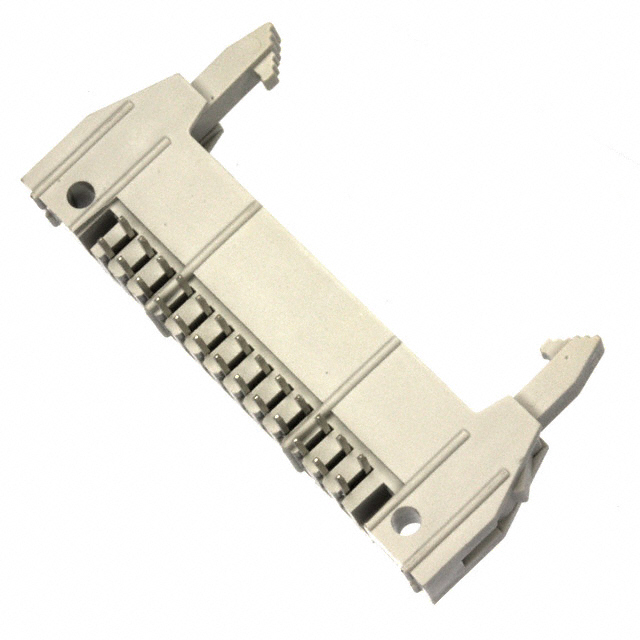

71922-126LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 71922-126LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 71922-126LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 71922-126LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 26POS DUAL R/A PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 18 pcs | 108 pcs | ||
|---|---|---|---|---|---|
| $0.832 | $0.756 | $0.648 | |||
| 504 pcs | 1008 pcs | 5004 pcs | |||
| $0.54 | $0.463 | $0.411 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 71922-126LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 26POS DUAL R/A PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78170 pcs | Data sheet | 71922 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Quickie™ |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 609-1763 71922126LF |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.339" (8.61mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Keying Slot, Mounting Flange |
| Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Through Hole, Right Angle 26 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.114" (2.90mm) | Contact Length - Mating | 0.228" (5.80mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold, GXT™ |
| Connector Type | Header | Applications | - |
