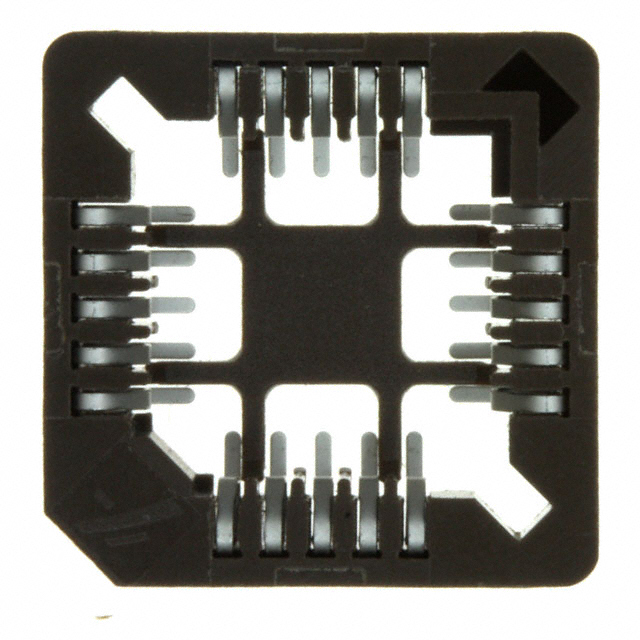

69802-120LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 69802-120LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 69802-120LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 69802-120LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN SOCKET PLCC 20POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 69802-120LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN SOCKET PLCC 20POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4968 pcs | Data sheet | 69830 |
| Category | Connectors, Interconnects | Type | PLCC |
| Termination Post Length | - | Termination | Solder |
| Series | - | Pitch - Post | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | 609-3476 | Operating Temperature | -55°C ~ 125°C |
| Number of Positions or Pins (Grid) | 20 (4 x 5) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyphenylene Sulfide (PPS) |
| Features | Closed Frame | Current Rating | 1A |
| Contact Resistance | 20 mOhm | Contact Material - Post | Phosphor Bronze |
| Contact Material - Mating | Phosphor Bronze | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin |
