69190-504

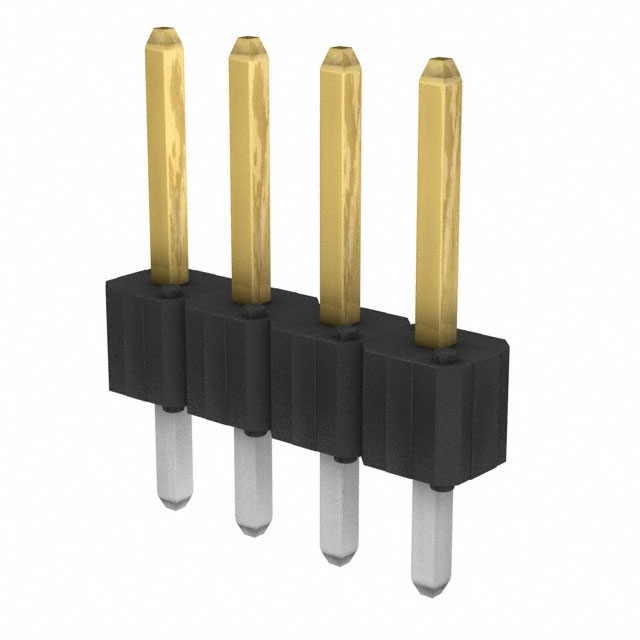

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 69190-504 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 69190-504 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 69190-504 |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | BERGSTIK II SR STRAIGHT RET |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $0.044 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 69190-504 | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | BERGSTIK II SR STRAIGHT RET | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 536248 pcs | Data sheet | 69191 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit, Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | BERGSTIK® II |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.450" (11.43mm) |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | - | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 4 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.120" (3.05mm) |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold or Gold, GXT™ | Connector Type | Header |
| Applications | - |
