69190-403

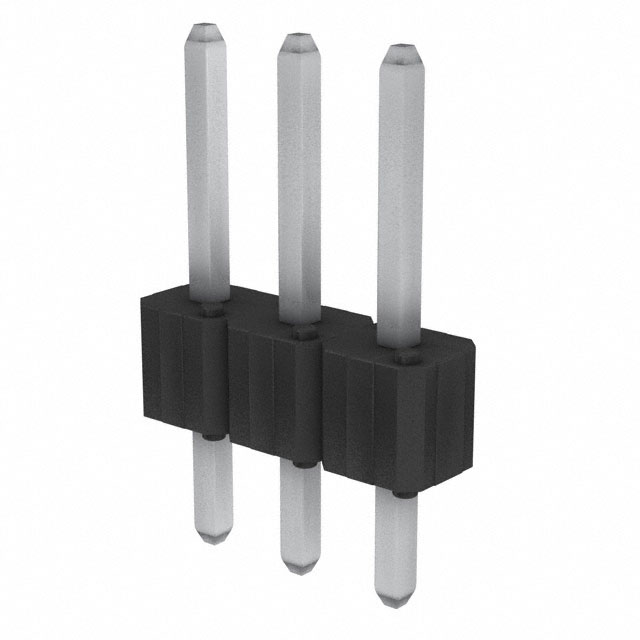

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 69190-403 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 69190-403 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 69190-403 |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | BERGSTIK II SR STRAIGHT RET |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.061 | $0.057 | $0.04 | $0.034 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.027 | $0.024 | $0.022 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 69190-403 | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | BERGSTIK II SR STRAIGHT RET | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1067627 pcs | Data sheet | 69191 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit, Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | BERGSTIK® II |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.450" (11.43mm) |
| Other Names | 609-5652 69190-403-ND |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | - |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 3 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
