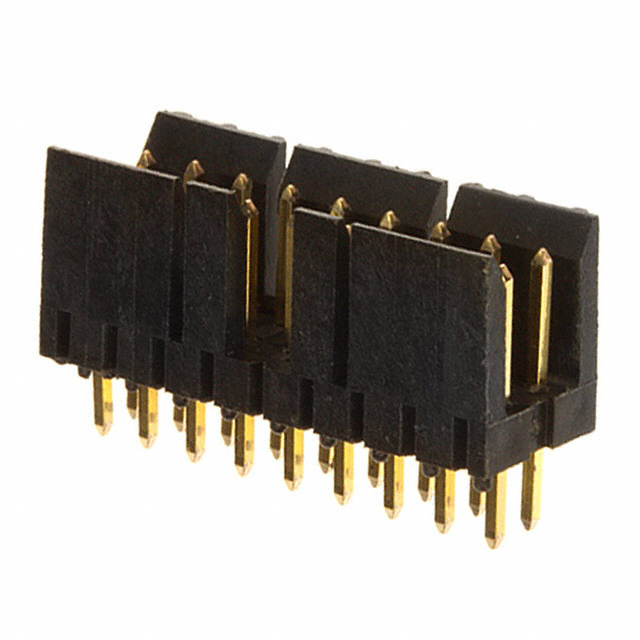

69168-118HLF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 69168-118HLF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 69168-118HLF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 69168-118HLF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 18POS DL PCB 30GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.786 | $0.714 | $0.612 | |||
| 500 pcs | 1000 pcs | 5000 pcs | |||
| $0.51 | $0.437 | $0.388 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 69168-118HLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 18POS DL PCB 30GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 100794 pcs | Data sheet | 69176 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 2 Wall | Series | Mini-PV™, Basics+ |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.900" (22.86mm) |
| Other Names | 609-2429 69168118HLF |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 18 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | - |
| Insulation Height | 0.386" (9.80mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 18 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold or Gold, GXT™ |
| Connector Type | Header | Applications | - |
