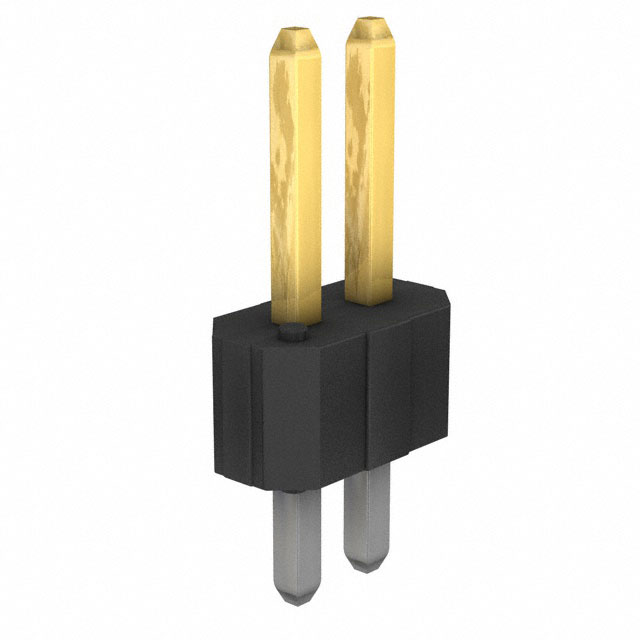

69157-102HLF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 69157-102HLF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 69157-102HLF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 69157-102HLF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | QUICKIE HEADER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.152 | $0.145 | $0.101 | $0.087 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.072 | $0.062 | $0.058 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 69157-102HLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | QUICKIE HEADER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 327518 pcs | Data sheet | Bergstik II Hdr SR Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | BERGSTIK® II |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | - |
| Packaging | Bulk | Overall Contact Length | 0.410" (10.41mm) |
| Other Names | 609-5537 69157-102HLF-ND |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 2 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | - |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 2 position |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | 0.200" (5.08mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold or Gold, GXT™ |
| Connector Type | Header | Applications | - |
