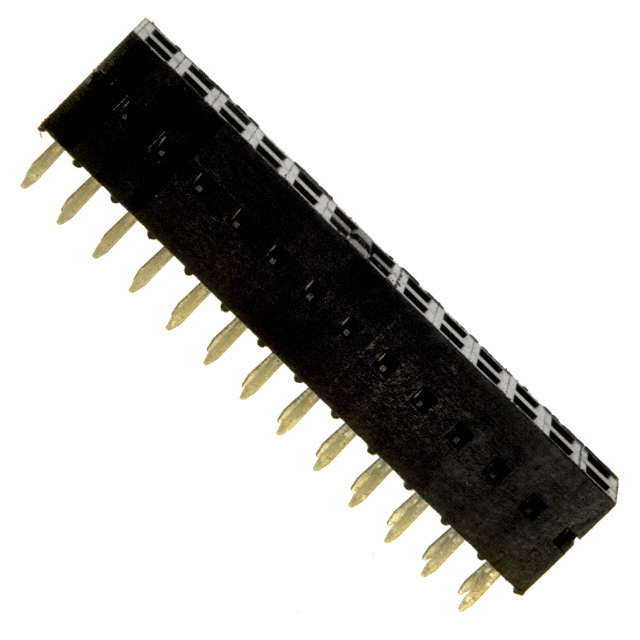

68683-313LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 68683-313LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 68683-313LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 68683-313LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN RCPT 26POS .100" DBL GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 17 pcs | 102 pcs | ||
|---|---|---|---|---|---|
| $1.293 | $1.24 | $1.034 | |||
| 510 pcs | 1003 pcs | 5015 pcs | |||
| $0.879 | $0.749 | $0.672 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 68683-313LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN RCPT 26POS .100" DBL GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50105 pcs | Data sheet | 68684 |
| Category | Connectors, Interconnects | Voltage Rating | 1000V |
| Termination | Solder | Style | Board to Board |
| Series | Dubox™ | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 609-3577 68683-313LF-ND 68683313LF |
Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Insulation Height | 0.276" (7.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 26 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.115" (2.92mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Industrial, Telecommunications |
