68466-209HLF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 68466-209HLF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 68466-209HLF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 68466-209HLF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | HEADER BERGSTIK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | ||||
|---|---|---|---|---|---|
| $0.13 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 68466-209HLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | HEADER BERGSTIK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 157485 pcs | Data sheet | Bergstik II Header SR R/A Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | BERGSTIK® II |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | 0.925" (23.50mm) |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 9 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | - | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 9 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.128" (3.25mm) |
| Contact Length - Mating | 0.697" (17.70mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold or Gold, GXT™ | Connector Type | Header |
| Applications | - |
- Related products
- Related news
Related products
- Part#:
68466 - Manufacturers:
Klein Tools - Description:
WRENCH OPEN END 15/16" X 1" 11" - In Stock:
2903
- Part#:
68466-236HLF - Manufacturers:
Amphenol FCI - Description:
BERGSTIK II .100" SR STRAIGHT - In Stock:
4631
- Part#:
68465-236HLF - Manufacturers:
Amphenol FCI - Description:
CONN HEADER 36POS STR .100 15AU - In Stock:
4317
- Part#:

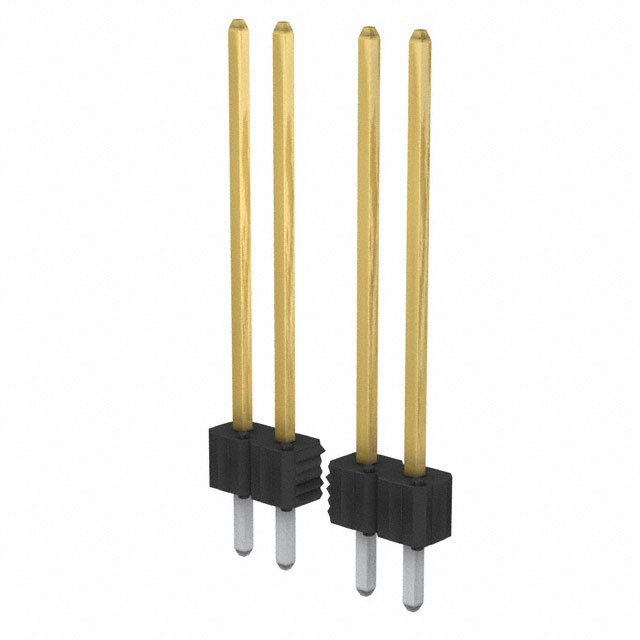

68466-214HLF - Manufacturers:
