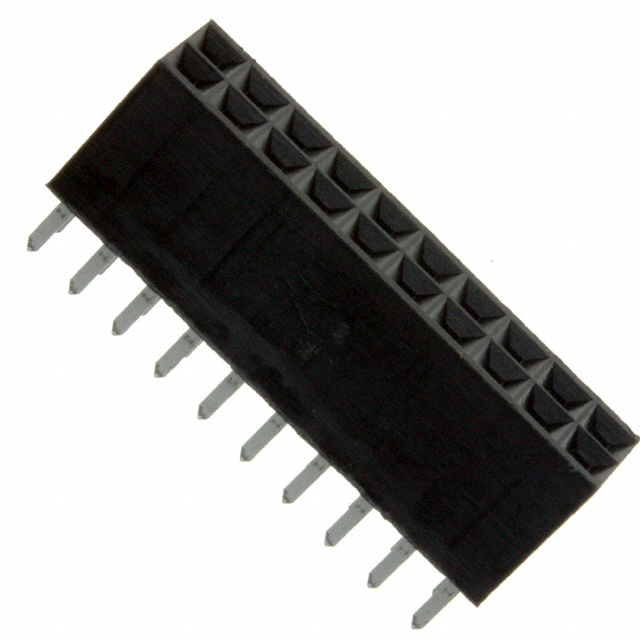

66953-010LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 66953-010LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 66953-010LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 66953-010LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN RCPT 20POS .100 DL STR PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 23 pcs | 115 pcs | ||
|---|---|---|---|---|---|
| $1.314 | $1.262 | $1.051 | |||
| 506 pcs | 1012 pcs | 5014 pcs | |||
| $0.894 | $0.762 | $0.683 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 66953-010LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN RCPT 20POS .100 DL STR PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55104 pcs | Data sheet | 66955 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 1250V |
| Termination | Solder | Style | Board to Board |
| Series | Dubox™, BergCon® PV™ | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | 609-2274 66953010LF |
Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.325" (8.25mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 20 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.138" (3.50mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
