66506-043LF

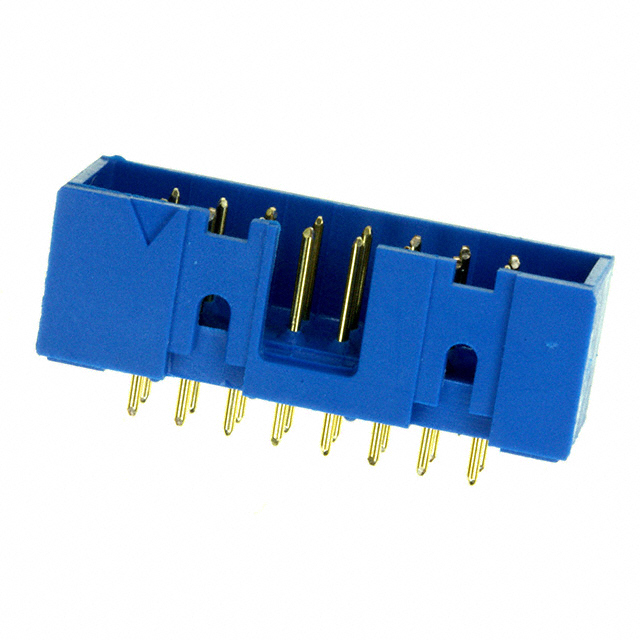

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 66506-043LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 66506-043LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 66506-043LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | QUICKIE HDR SLIM-LN VERT 16POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 30 pcs | 120 pcs | 510 pcs | |
|---|---|---|---|---|---|
| $0.513 | $0.437 | $0.399 | $0.332 | ||
| 1020 pcs | 5010 pcs | 10020 pcs | |||
| $0.285 | $0.252 | $0.247 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 66506-043LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | QUICKIE HDR SLIM-LN VERT 16POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 88660 pcs | Data sheet | 66527 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Quickie™ |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 609-3641 66506-043LF-ND 66506043LF |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.365" (9.27mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 16 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.105" (2.67mm) | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold or Gold, GXT™ |
| Connector Type | Header | Applications | - |
