62684-451100ALF

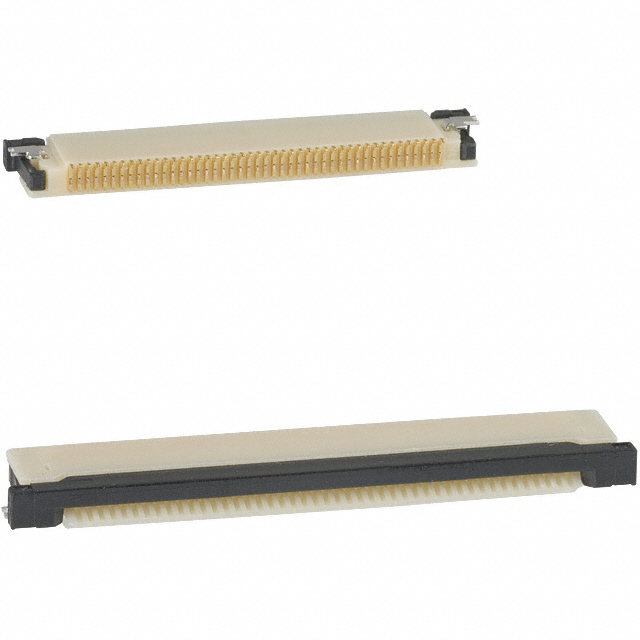

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 62684-451100ALF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 62684-451100ALF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 62684-451100ALF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN FPC BOTTOM 45POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.434 | $0.381 | $0.359 | $0.344 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.329 | $0.299 | $0.269 | $0.239 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 62684-451100ALF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN FPC BOTTOM 45POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87401 pcs | Data sheet | 62684 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | OPU |
| Pitch | 0.020" (0.50mm) | Packaging | Cut Tape (CT) |
| Other Names | 609-1196-1 | Operating Temperature | -55°C ~ 85°C |
| Number of Positions | 45 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 12 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polyamide (PA9T), Nylon 9T, Glass Filled | Housing Color | Beige |
| Height Above Board | 0.079" (2.00mm) | Flat Flex Type | FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 45 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 2.00µin (0.051µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Thermoplastic, Glass Filled |
| Actuator Color | Black |
