57202-G52-04LF

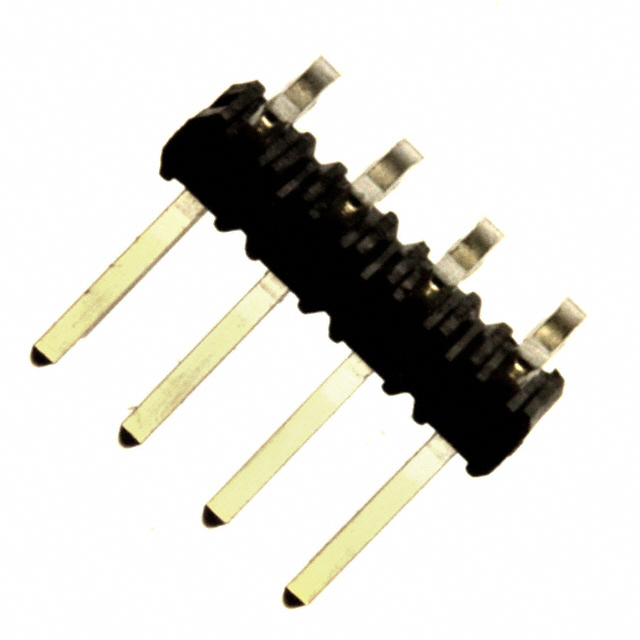

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 57202-G52-04LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 57202-G52-04LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 57202-G52-04LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 8POS 2MM STR DL SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.438 | $0.386 | $0.333 | $0.272 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.242 | $0.212 | $0.201 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 57202-G52-04LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 8POS 2MM STR DL SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 103942 pcs | Data sheet | 57202 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V (AC/DC) |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | Minitek® |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 57202G5204LF 609-2623 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | - |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 8 position 0.079" (2.00mm) | Current Rating | 2A (AC/DC) |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | 0.157" (4.00mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold, GXT™ | Connector Type | Header |
| Applications | - |
