55510-304TRLF

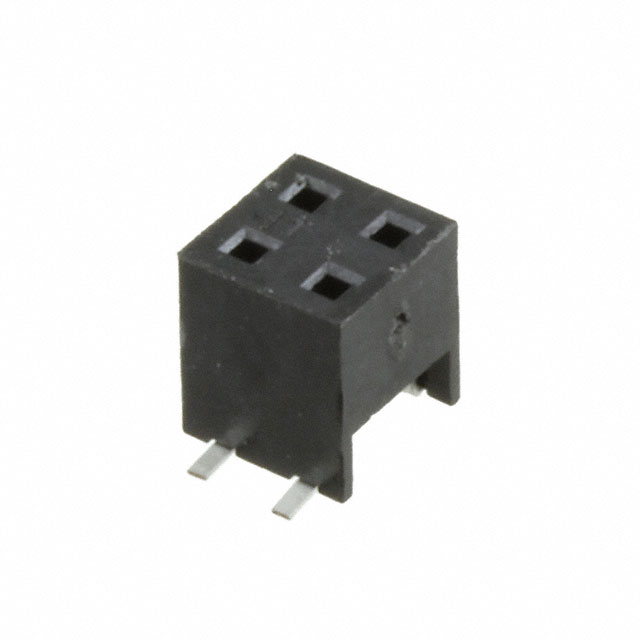

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 55510-304TRLF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 55510-304TRLF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 55510-304TRLF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN RCPT 4POS SMD GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 750 pcs | 1500 pcs | 3750 pcs | ||
|---|---|---|---|---|---|
| $0.132 | $0.117 | $0.11 | |||
| 5250 pcs | 18750 pcs | 37500 pcs | |||
| $0.106 | $0.097 | $0.095 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 55510-304TRLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN RCPT 4POS SMD GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 241165 pcs | Data sheet | 55510 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Style | Board to Board |
| Series | Minitek® | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tape & Reel (TR) |
| Other Names | 55510-304TRLF-ND 609-5082-2 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Plastic | Insulation Height | 0.177" (4.50mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | 4 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold | Current Rating | 2A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose, Industrial, Medical |
