55508-010
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 55508-010 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 55508-010 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 55508-010 |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN RCPT 10POS SMD GOLD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 55508-010 | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN RCPT 10POS SMD GOLD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |

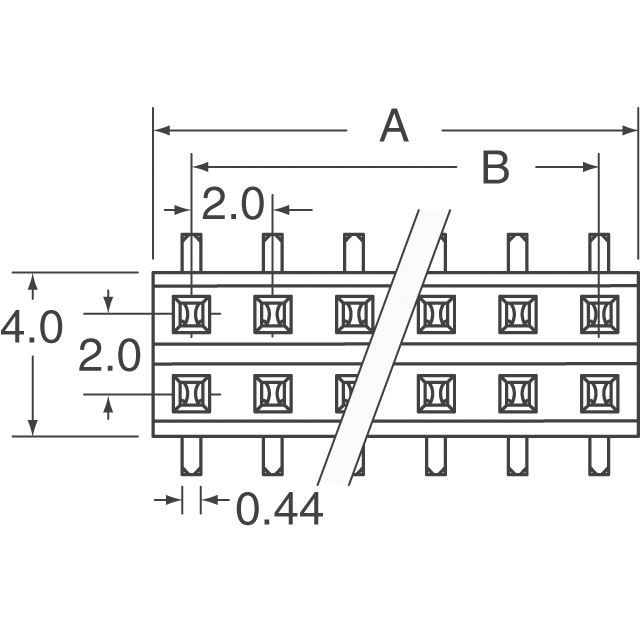

| Quantity Available | 5176 pcs | Data sheet | 55508 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Style | Board to Board |
| Series | Minitek® | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 55508-10 55508-10-ND |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Plastic | Insulation Height | 0.091" (2.30mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | 10 Position Receptacle Connector 0.079" (2.00mm) Surface Mount Gold | Current Rating | 2A |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 1.97µin (0.050µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose, Industrial, Medical |
