54772-101-22LF

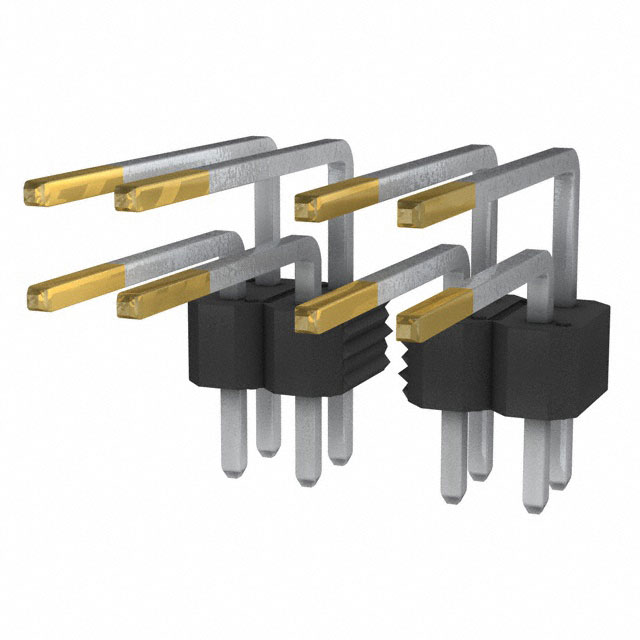

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 54772-101-22LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 54772-101-22LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 54772-101-22LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | HEADER BERGSTIK R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $0.355 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 54772-101-22LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | HEADER BERGSTIK R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64871 pcs | Data sheet | 54772 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | BERGSTIK® |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 22 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 22 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold, GXT™ | Connector Type | Header |
| Applications | - |
