54202-G0811ALF

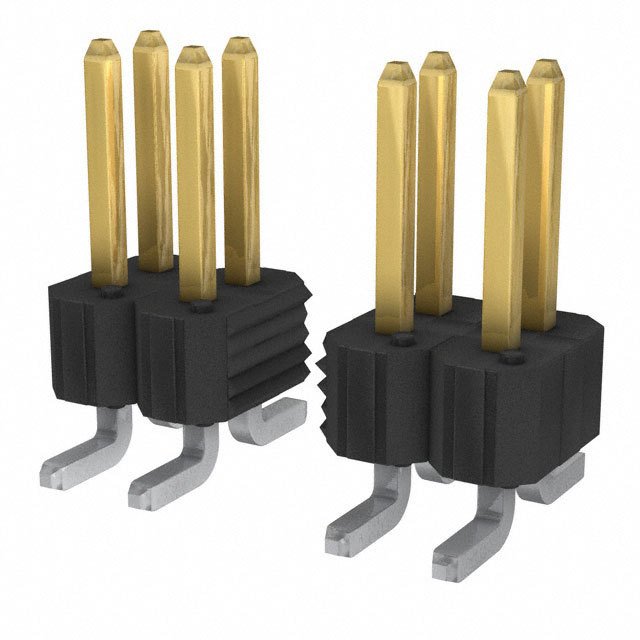

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 54202-G0811ALF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 54202-G0811ALF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 54202-G0811ALF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HDR DUAL 0.100" SMT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 740 pcs | ||||
|---|---|---|---|---|---|
| $0.247 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 54202-G0811ALF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HDR DUAL 0.100" SMT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75849 pcs | Data sheet | 54202 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | BERGSTIK® |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 22 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | - | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 22 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Length - Mating | 0.230" (5.84mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold or Gold, GXT™ | Connector Type | Header |
| Applications | - |
