54102-G06-00

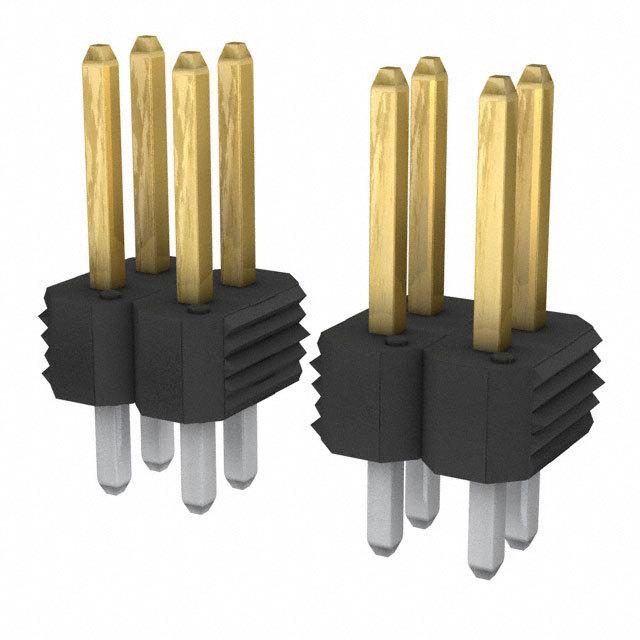

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 54102-G06-00 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 54102-G06-00 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 54102-G06-00 |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | BERGSTRIP 0.100" HEADER |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 45000 pcs | ||||
|---|---|---|---|---|---|
| $0.007 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 54102-G06-00 | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | BERGSTRIP 0.100" HEADER | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3468092 pcs | Data sheet | 54102 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | BERGSTIK® |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | 0.440" (11.18mm) |
| Other Names | 54102-G6-0 54102-G6-0-ND |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 45000, Cuttable | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | - |
| Insulation Height | 0.100" (2.54mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 45000, Cuttable position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold or Gold, GXT™ |
| Connector Type | Header | Applications | - |
