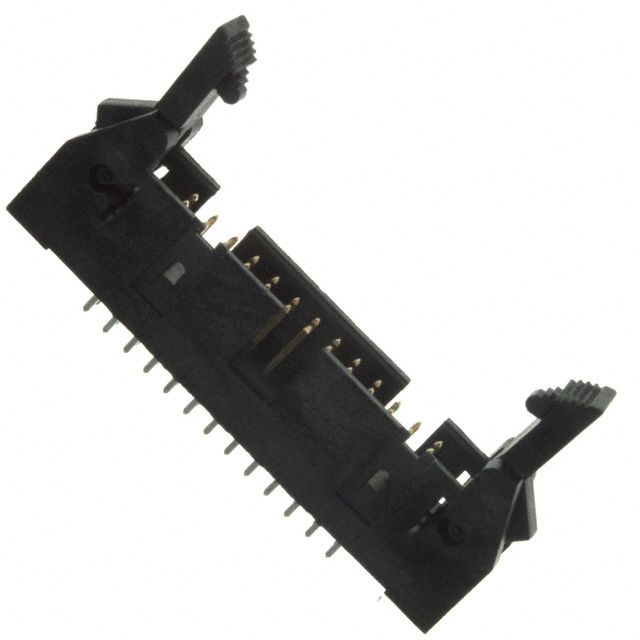

53611-S26-4LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 53611-S26-4LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 53611-S26-4LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 53611-S26-4LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | EJC LTC.100"SHD HD.100"VER 15GLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 36 pcs | 108 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $1.994 | $1.755 | $1.596 | $1.356 | $1.157 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 53611-S26-4LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | EJC LTC.100"SHD HD.100"VER 15GLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31308 pcs | Data sheet | 53611 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Quickie™ |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | 53611-S26-4LF-ND 53611S264LF 609-3590 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.640" (16.26mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Latch Lock/Eject Hooks | Detailed Description | Connector Header Through Hole 26 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold or Gold, GXT™ |
| Connector Type | Header | Applications | - |
