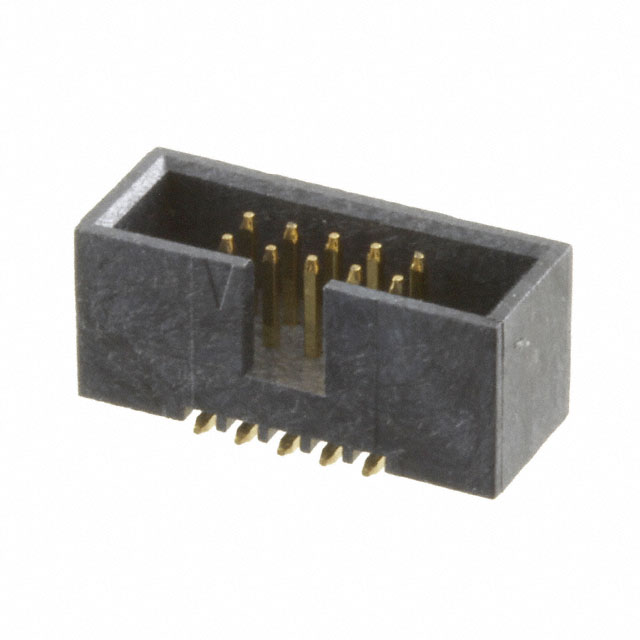

20021521-00010D8LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 20021521-00010D8LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 20021521-00010D8LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 20021521-00010D8LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | HD SMT SHRD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 22 pcs | 110 pcs | ||
|---|---|---|---|---|---|
| $1.187 | $1.14 | $0.95 | |||
| 506 pcs | 1012 pcs | 5016 pcs | |||
| $0.808 | $0.689 | $0.618 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 20021521-00010D8LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | HD SMT SHRD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 49122 pcs | Data sheet | 20021521 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Minitek 127® 20021521 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 20021521-00010D8LF-ND 609-4956 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Plastic |
| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot, Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 10 position 0.050" (1.27mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
