20021221-10214C8LF

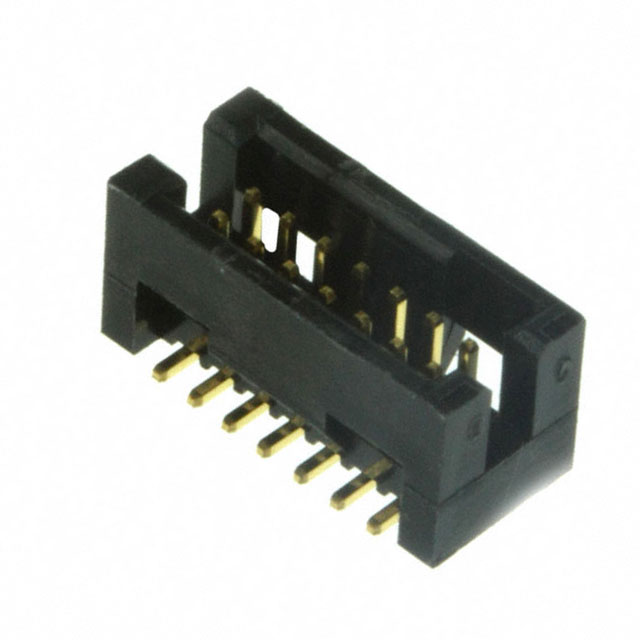

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 20021221-10214C8LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 20021221-10214C8LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 20021221-10214C8LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | 1.27 HD SMT SHRD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | ||||
|---|---|---|---|---|---|
| $0.455 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 20021221-10214C8LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | 1.27 HD SMT SHRD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70566 pcs | Data sheet | 20021221 DrawingMinitek 127 Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Minitek 127® 20021221 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | 13 | Number of Positions | 14 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.220" (5.60mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide, Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 14 position 0.050" (1.27mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | 0.120" (3.05mm) | Contact Finish Thickness - Post | 50.0µin (1.27µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold, GXT™ | Connector Type | Header |
| Applications | - |
