20021221-00080T4LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 20021221-00080T4LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 20021221-00080T4LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 20021221-00080T4LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 80POS DUAL SHRD SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 550 pcs | ||||
|---|---|---|---|---|---|
| $1.504 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 20021221-00080T4LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 80POS DUAL SHRD SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 23334 pcs | Data sheet | 20021221 DrawingMinitek 127 Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | Minitek 127® 20021221 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 10122282-380000TLF 609-3751 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 80 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |

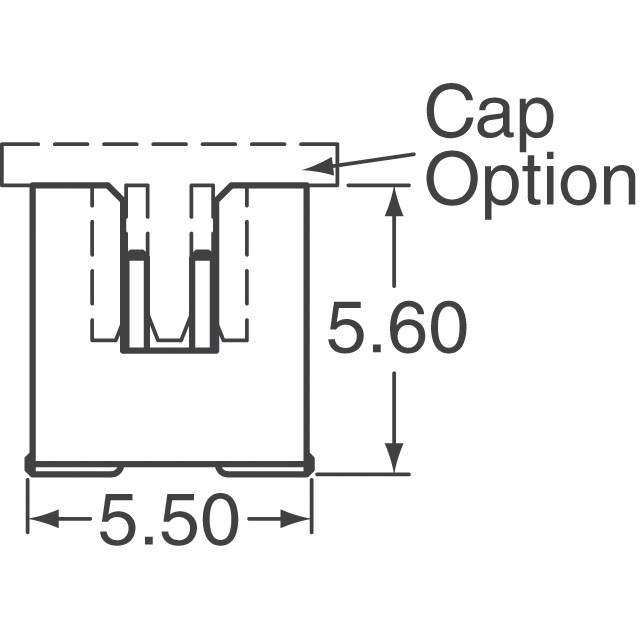

| Insulation Height | 0.220" (5.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 80 position 0.050" (1.27mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | 50.0µin (1.27µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
