20021111-00020T4LF

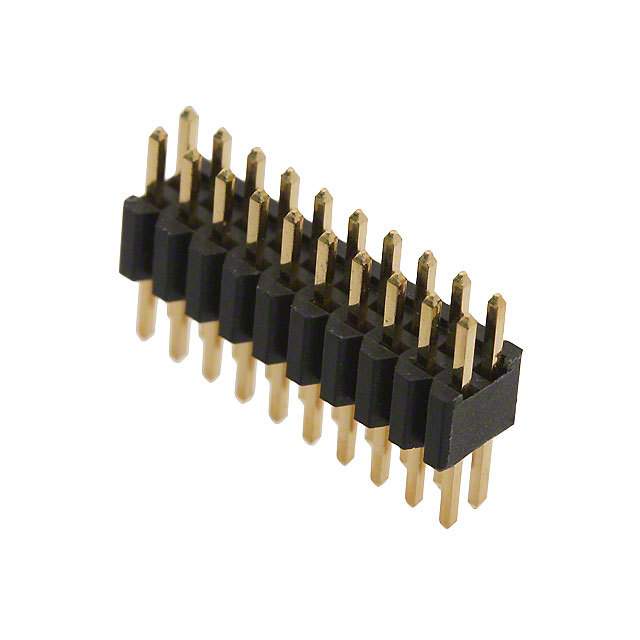

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 20021111-00020T4LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 20021111-00020T4LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 20021111-00020T4LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 20POS UNSHD VERT T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 46 pcs | 138 pcs | 506 pcs | |
|---|---|---|---|---|---|
| $0.449 | $0.372 | $0.341 | $0.279 | ||
| 1012 pcs | 5014 pcs | 10028 pcs | |||
| $0.248 | $0.217 | $0.206 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 20021111-00020T4LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 20POS UNSHD VERT T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 93596 pcs | Data sheet | 20021111 DrawingMinitek 127 Catalog |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | Minitek 127® 20021111 |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | 0.309" (7.86mm) |
| Other Names | 10122277-320000TLF 2002111100020T4LF 609-3717 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.098" (2.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 20 position 0.050" (1.27mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.091" (2.30mm) | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | 50.0µin (1.27µm) | Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
