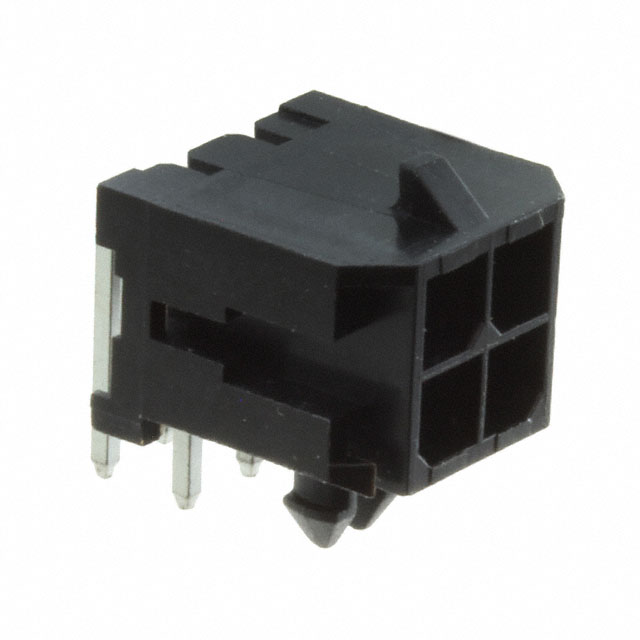

10132449-0421GLF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10132449-0421GLF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10132449-0421GLF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10132449-0421GLF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | MINITEK PWR 3.0 HCC HDR |
| Lead Free Status / RoHS Status | RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 364 pcs | 728 pcs | |
|---|---|---|---|---|---|
| $0.169 | $0.16 | $0.112 | $0.107 | ||
| 1092 pcs | 5096 pcs | 10192 pcs | |||
| $0.088 | $0.077 | $0.072 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10132449-0421GLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | MINITEK PWR 3.0 HCC HDR | Lead Free Status / RoHS Status | RoHS Compliant |
| Quantity Available | 287318 pcs | Data sheet | 10132449 DrawingMinitek® Pwr 3.0 High Current Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Minitek Pwr® 3.0 |
| Row Spacing - Mating | 0.118" (3.00mm) | RoHS Status | RoHS Compliant |
| Pitch - Mating | 0.118" (3.00mm) | Packaging | Tray |
| Overall Contact Length | - | Other Names | 10132449-0421GLF-ND 609-5286 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole, Right Angle | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Insulation Material | Polyamide (PA9T), Nylon 9T | Insulation Height | 0.343" (8.71mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Lock, Glow Wire Compliant | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole, Right Angle 4 position 0.118" (3.00mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.126" (3.20mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Plug |
| Applications | General Purpose, Medical, Military, Telecommunications |
