10127721-242LF

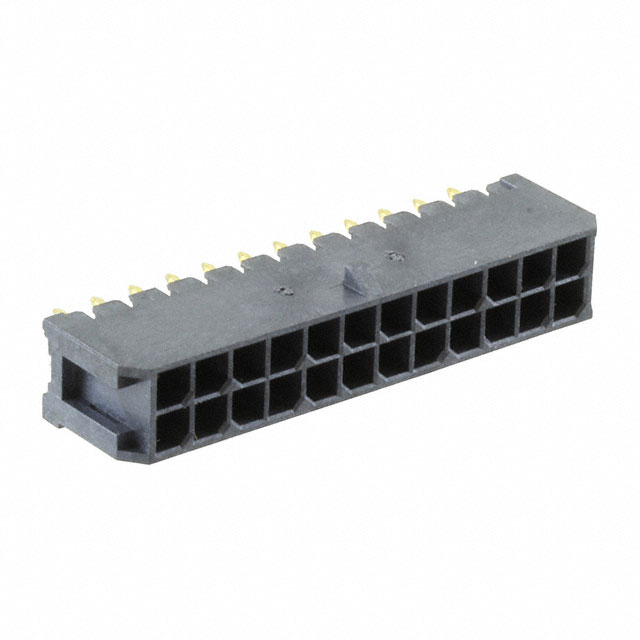

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10127721-242LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10127721-242LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10127721-242LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | MINITEK PWR3.0 VT HEADER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 150 pcs | 600 pcs | |
|---|---|---|---|---|---|
| $0.522 | $0.46 | $0.396 | $0.324 | ||
| 1050 pcs | 5100 pcs | 10050 pcs | |||
| $0.288 | $0.252 | $0.24 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10127721-242LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | MINITEK PWR3.0 VT HEADER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 78182 pcs | Data sheet | 10127721 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Minitek Pwr® 3.0 |
| Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 10127721-242LF-ND 609-5070 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.433" (11.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole 24 position 0.118" (3.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | Flash | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Plug | Applications | - |
