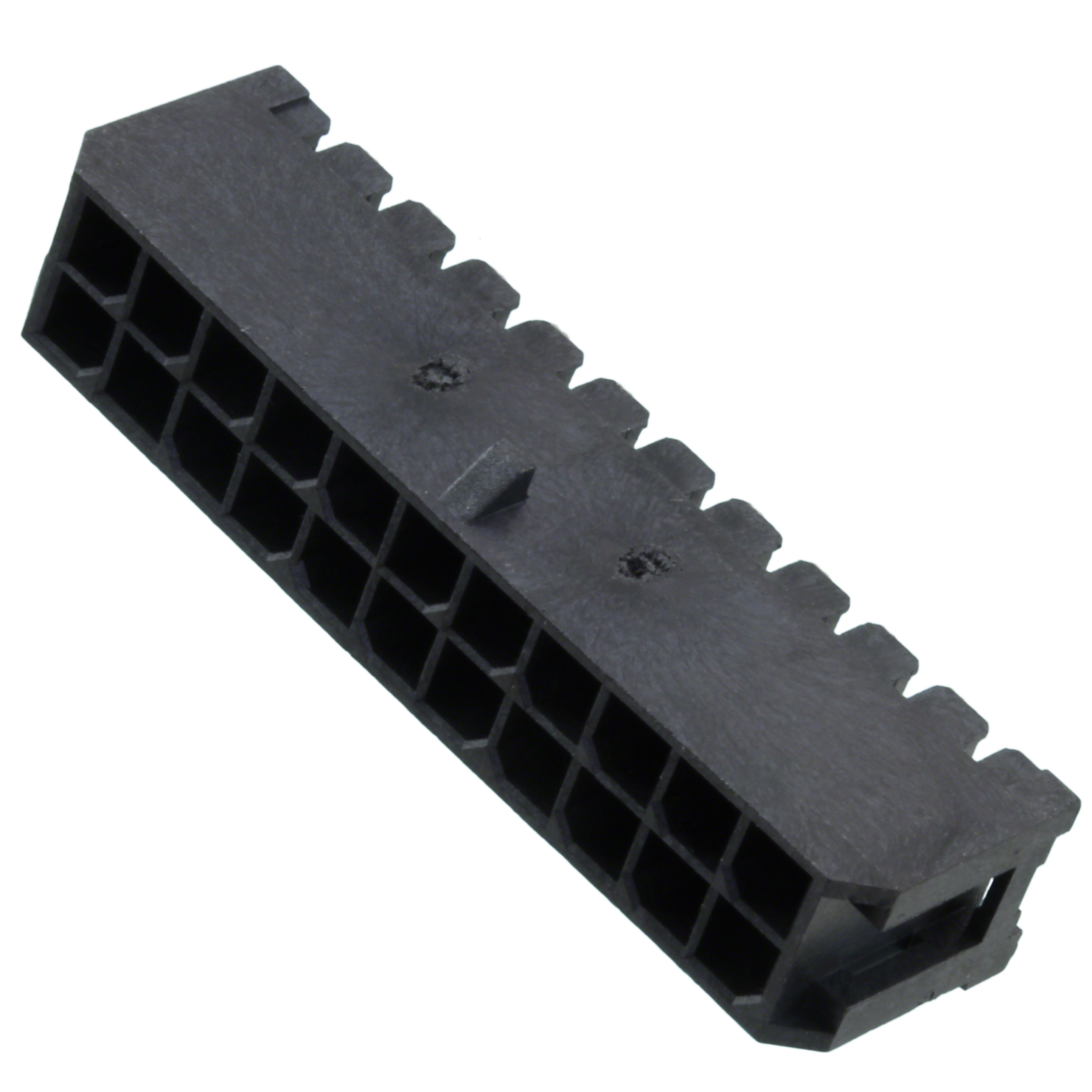

10127720-221LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10127720-221LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10127720-221LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10127720-221LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | MINITEK PWR3.0 RA HEADER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 450 pcs | ||||
|---|---|---|---|---|---|
| $0.351 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10127720-221LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | MINITEK PWR3.0 RA HEADER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 64435 pcs | Data sheet | 10127720 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Minitek Pwr® 3.0 |
| Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.118" (3.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 10127720-221LF-ND 609-4856 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 22 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.285" (7.25mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 22 position 0.118" (3.00mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.126" (3.20mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Tin |
| Connector Type | Plug | Applications | - |
