10125839-06RAEHLF

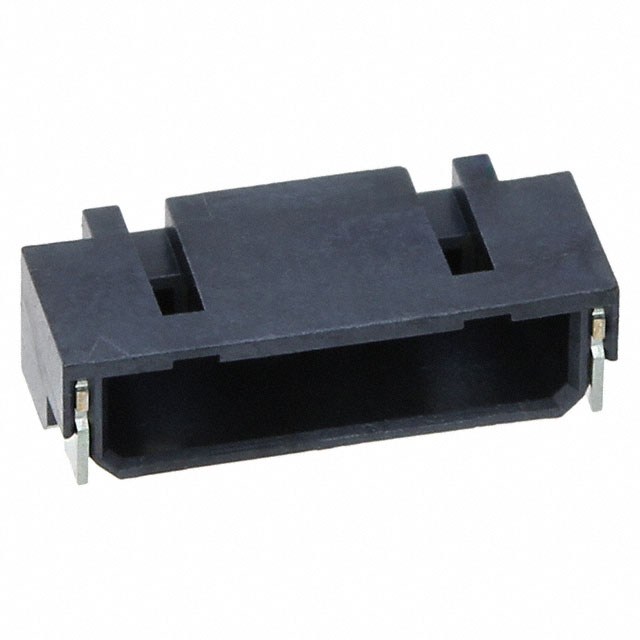

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10125839-06RAEHLF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10125839-06RAEHLF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10125839-06RAEHLF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | RCPT 1.2MM 6POS WTB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | ||
|---|---|---|---|---|---|
| $0.076 | $0.073 | $0.068 | |||
| 10000 pcs | 14000 pcs | 50000 pcs | |||
| $0.064 | $0.062 | $0.059 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10125839-06RAEHLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | RCPT 1.2MM 6POS WTB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 319263 pcs | Data sheet | 10125839 Drawing* |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | 0.047" (1.20mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | 10125839-06RAEHLF-ND 609-4887-2 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Insulation Height | 0.098" (2.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Surface Mount, Right Angle 6 position 0.047" (1.20mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 2.00µin (0.051µm) | Contact Finish Thickness - Mating | 3.90µin (0.099µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | - |
