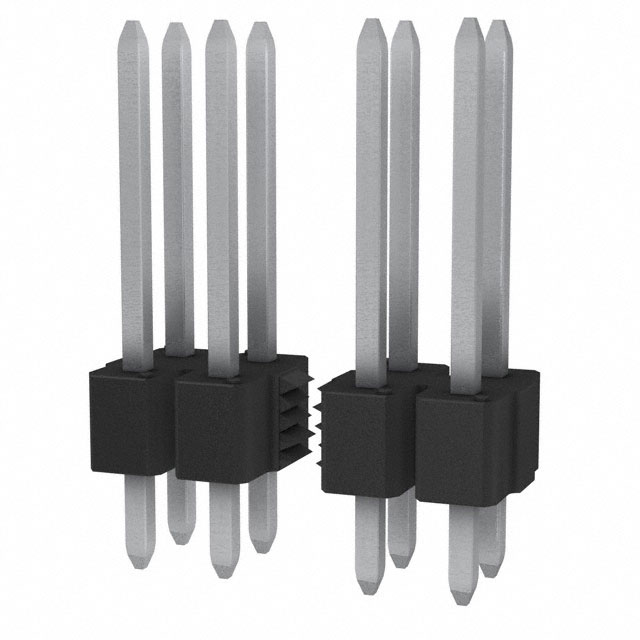

10123500-412001TLF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10123500-412001TLF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10123500-412001TLF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10123500-412001TLF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | AIRMAX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4875 pcs | ||||
|---|---|---|---|---|---|
| $0.167 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10123500-412001TLF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | AIRMAX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 129302 pcs | Data sheet | 10123500 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | BERGSTIK® |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | 0.563" (14.30mm) |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Liquid Crystal Polymer (LCP) | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 12 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.110" (2.79mm) |
| Contact Length - Mating | 0.353" (8.97mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
