Home > Products > Cable Assemblies > Pluggable Cables > 10117949-2005HLF

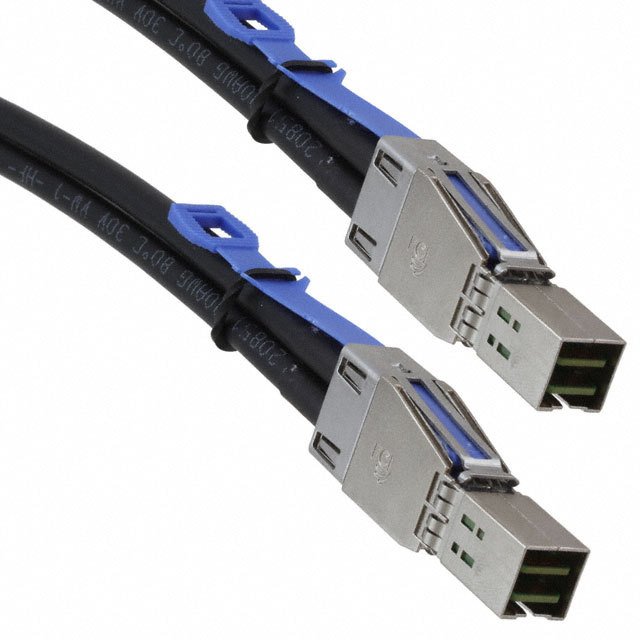

10117949-2005HLF

10117949-2005HLF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10117949-2005HLF with confidence from Components-World.HK, 1 Year Warranty

Dowload 10117949-2005HLF Details in PDF

Request a Quote

Part Number	10117949-2005HLF
Manufacturer	Amphenol FCI
Description	MINI-SAS HD ASY 4X4 12G 30AWG .5
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1933 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
Reference Price (In US Dollars)	$20.573	$19.365	$18.76	$17.549	$16.581

Product parameter
Data sheet

Product parameter

Part Number	10117949-2005HLF	Manufacturer	Amphenol FCI
Description	MINI-SAS HD ASY 4X4 12G 30AWG .5	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1933 pcs	Data sheet	10117949 Drawing
Category	Cable Assemblies	Wire Gauge	30 AWG
Usage	External	Shielding	Shielded
Series	10117949	Other Names	609-4777
Operating Temperature	-40°C ~ 80°C	Number of Positions	36
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	10 Weeks
Length	1.64' (500.0mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Gender	Male to Male	Frequency - Max	12 Gbps
Features	Passive, Pull Tab	Fastening Type	Latch Lock
Detailed Description	36 Position miniSAS HD 4x Plug to Plug 1.64' (500.0mm) Black Shielded	Current - Max/Contact	500mA
Connector Type	Plug to Plug	Color	Black
Cable Type	Round	Cable Connectors	miniSAS HD 4x
