10080054-115LF

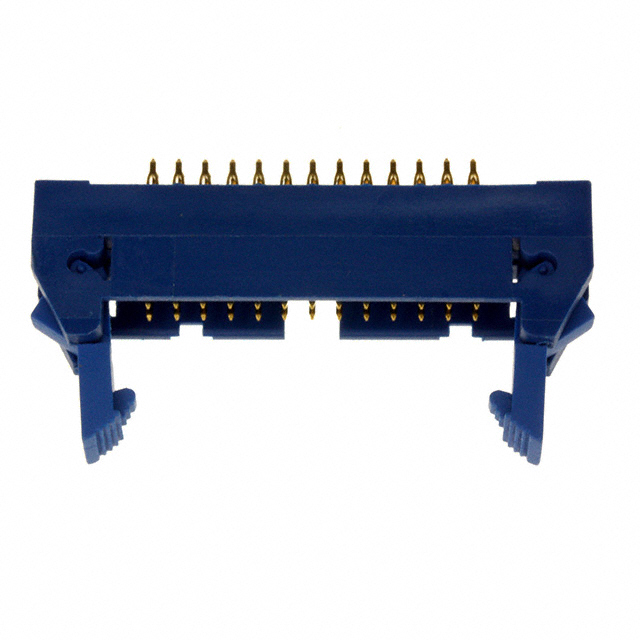

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10080054-115LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10080054-115LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10080054-115LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 26POS DUAL VERT PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.208 | $2.116 | $1.748 | $1.472 | $1.288 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 10080054-115LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 26POS DUAL VERT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29236 pcs | Data sheet | 10080054 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Quickie™ |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | 0.629" (15.97mm) |
| Other Names | 10080054115LF 609-3093 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 26 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyester, Glass Filled | Insulation Height | 0.640" (16.26mm) |
| Insulation Color | Blue | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Latch Lock/Eject Hooks |
| Detailed Description | Connector Header Through Hole 26 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Phosphor Bronze Alloy | Contact Length - Post | 0.160" (4.06mm) |
| Contact Length - Mating | 0.234" (5.94mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Gold or Gold, GXT™ | Connector Type | Header |
| Applications | - |
