10075025-G01-12ALF

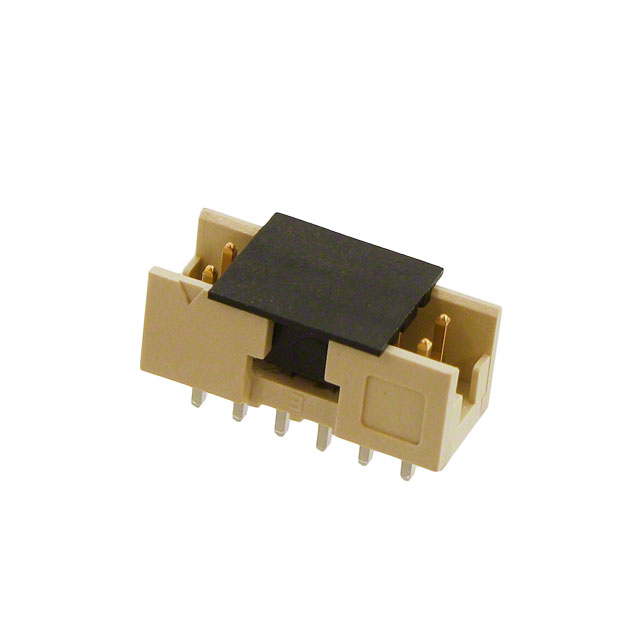

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10075025-G01-12ALF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10075025-G01-12ALF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10075025-G01-12ALF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 12POS VERT GOLD T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $0.85 | $0.771 | $0.661 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10075025-G01-12ALF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 12POS VERT GOLD T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52761 pcs | Data sheet | 10075025 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V (AC/DC) |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Minitek® |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Cut Tape (CT) | Overall Contact Length | - |
| Other Names | 609-4523-1 | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.220" (5.60mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Keying Slot, Pick and Place | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Through Hole 12 position 0.079" (2.00mm) | Current Rating | 2A (AC/DC) |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.079" (2.00mm) |
| Contact Length - Mating | 0.157" (4.00mm) | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold, GXT™ | Connector Type | Header |
| Applications | - |
