10075024-G01-05ULF

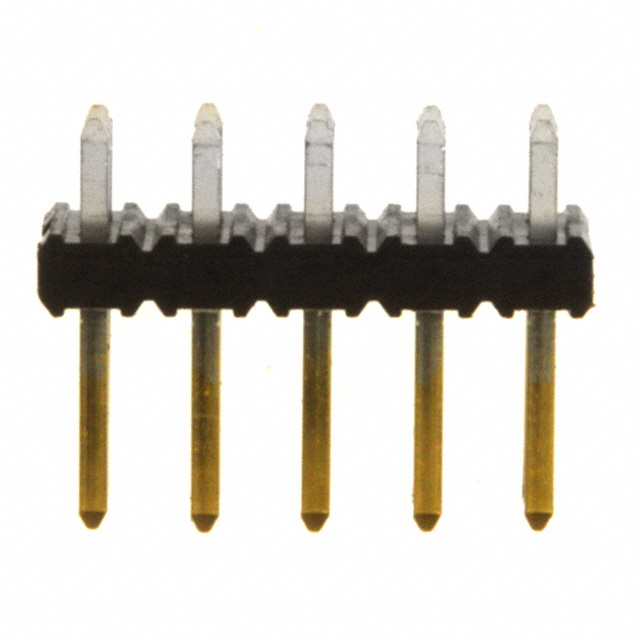

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10075024-G01-05ULF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10075024-G01-05ULF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10075024-G01-05ULF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 10POS VERT 2MM GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 58 pcs | 116 pcs | 522 pcs | |
|---|---|---|---|---|---|
| $0.406 | $0.322 | $0.308 | $0.252 | ||
| 1044 pcs | 5046 pcs | 10034 pcs | |||
| $0.224 | $0.196 | $0.186 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10075024-G01-05ULF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 10POS VERT 2MM GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 106871 pcs | Data sheet | Minitek® Solder-to-Board BrochureMinitek® II Series Spec10075024 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V (AC/DC) |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | Minitek® |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | 0.295" (7.49mm) |
| Other Names | 10075024G0105ULF 609-2889 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.059" (1.50mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 10 position 0.079" (2.00mm) |
| Current Rating | 2A (AC/DC) | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.079" (2.00mm) | Contact Length - Mating | 0.157" (4.00mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
