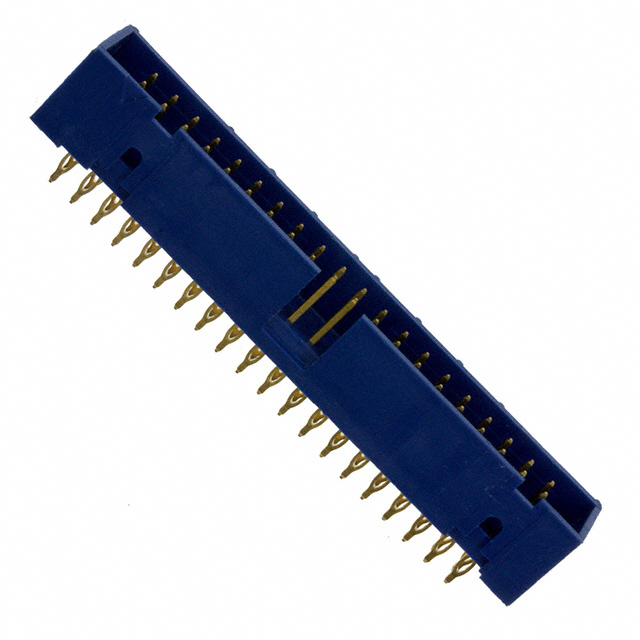

10073456-049LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10073456-049LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10073456-049LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10073456-049LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 40POS DUAL VERT PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 74 pcs | 148 pcs | 518 pcs | 1036 pcs |
|---|---|---|---|---|---|
| $2.35 | $1.957 | $1.859 | $1.566 | $1.37 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 10073456-049LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 40POS DUAL VERT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 21882 pcs | Data sheet | 10073456 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Press-Fit, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Quickie™ |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | 0.510" (12.95mm) |
| Other Names | 10073456049LF 609-3088 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.365" (9.27mm) | Insulation Color | Blue |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 40 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.160" (4.06mm) | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | 40.0µin (1.02µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
