10063545-400H

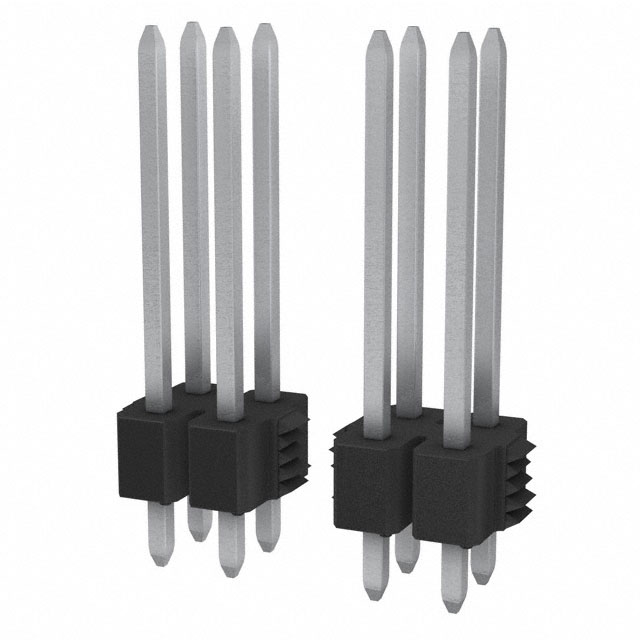

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10063545-400H with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10063545-400H with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10063545-400H |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | HEADER BERGSTIK STR |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 60000 pcs | ||||
|---|---|---|---|---|---|
| $0.007 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10063545-400H | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | HEADER BERGSTIK STR | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 3233434 pcs | Data sheet | 10063545 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Unshrouded | Series | BERGSTIK® |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | 0.646" (16.40mm) |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 20000, Cuttable |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | - | Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole 20000, Cuttable position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.091" (2.30mm) |
| Contact Length - Mating | 0.455" (11.56mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | 120.0µin (3.05µm) | Contact Finish - Post | - |
| Contact Finish - Mating | Tin | Connector Type | Header, Breakaway |
| Applications | - |
