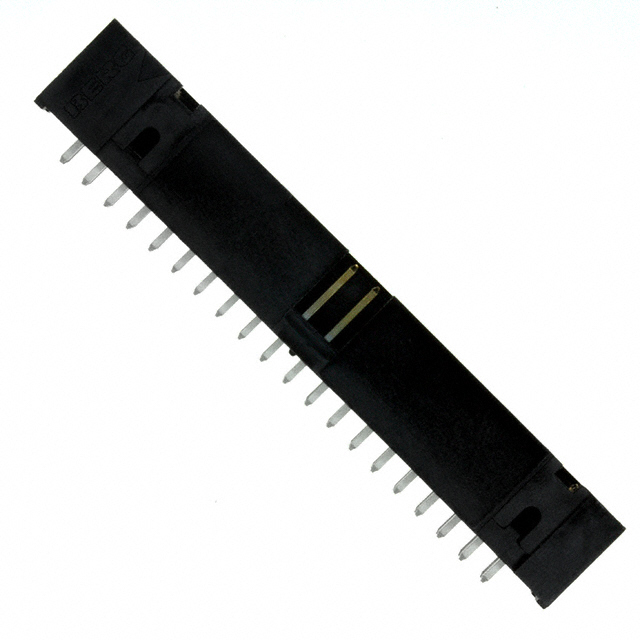

10056844-140LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10056844-140LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10056844-140LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10056844-140LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN HEADER 40POS PIP VERT 30AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 300 pcs | ||||
|---|---|---|---|---|---|
| $0.874 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10056844-140LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN HEADER 40POS PIP VERT 30AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 44136 pcs | Data sheet | 10056844-yyy(LF) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Quickie™ |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 609-3021 | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.366" (9.30mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 40 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.079" (2.00mm) | Contact Length - Mating | 0.236" (6.00mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold, GXT™ |
| Connector Type | Header | Applications | - |
