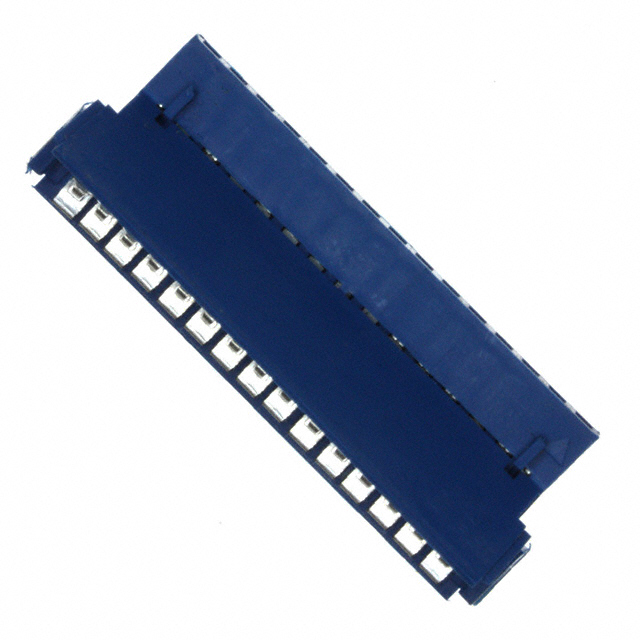

10022753-015LF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10022753-015LF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10022753-015LF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10022753-015LF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN FFC FPC RCPT 15POS 2.54MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10022753-015LF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN FFC FPC RCPT 15POS 2.54MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5028 pcs | Data sheet | 10022753 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Termination | IDC | Series | Clincher™ |
| Pitch | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 10022753015LF 609-2203 |
Operating Temperature | -65°C ~ 105°C |
| Number of Positions | 15 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 100 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Latch Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Thermoplastic |
| Housing Color | Blue | Height Above Board | - |
| Flat Flex Type | FFC, FPC | Features | - |
| FFC, FCB Thickness | 0.33mm | Detailed Description | 15 Position FFC, FPC Connector Receptacle 0.100" (2.54mm) Free Hanging (In-Line) |
| Current Rating | 2A per Contact | Contact Material | Copper Nickel Alloy |
| Contact Finish Thickness | 100.0µin (2.54µm) | Contact Finish | Tin |
| Connector/Contact Type | Receptacle | Cable End Type | - |
| Actuator Material | - | Actuator Color | - |
