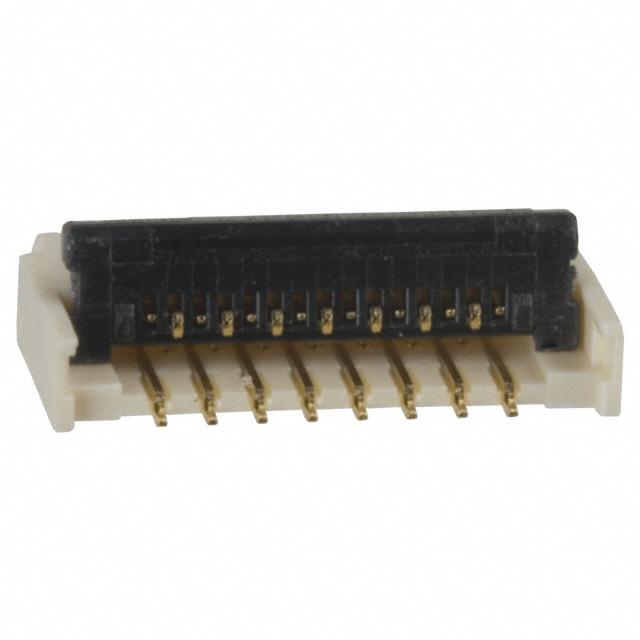

10017251-152240ELF
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 10017251-152240ELF with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 10017251-152240ELF with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 10017251-152240ELF |
|---|---|
| Manufacturer | Amphenol FCI |
| Description | CONN FFC TOP 15POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 10017251-152240ELF | Manufacturer | Amphenol FCI |
|---|---|---|---|
| Description | CONN FFC TOP 15POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4341 pcs | Data sheet | 10017251 Series Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Series | SFYL-U |
| Pitch | 0.012" (0.30mm) | Packaging | Cut Tape (CT) |
| Other Names | 10017251152240ELF 609-1224-1 |
Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 15 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10 |
| Material Flammability Rating | UL94 V-0 | Locking Feature | Flip Lock |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Thermoplastic, Glass Filled |
| Housing Color | White | Height Above Board | 0.047" (1.20mm) |
| Flat Flex Type | FFC | Features | Low Insertion Force (LIF) |
| FFC, FCB Thickness | 0.20mm | Detailed Description | 15 Position FFC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle |
| Current Rating | 0.2A | Contact Material | Copper Alloy |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector/Contact Type | Contacts, Top | Cable End Type | Notched |
| Actuator Material | Thermoplastic | Actuator Color | Black |
